Engine pix from Galaxee / DH

[Original source: http://priuschat.com/forums/x/29957-reseal.html ]

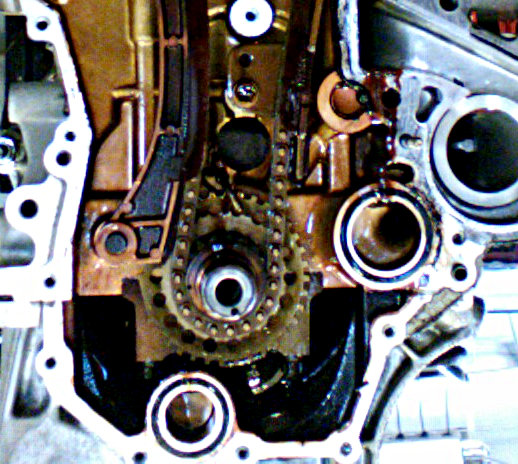

The crank sensor wheel, timing chain, etc.  The gap can be seen on the
left side.  The crankshaft Woodruff key slot probably points straight up
at #1 TDC, but remember that this is an *offset* crank so a much closer
look would be needed to determine if it points straight up, or a couple of
degrees over at the piston centerline, or what.  Similarly with where the
flat spot on the wheel would be.  As long as the ECM knows what's going on...

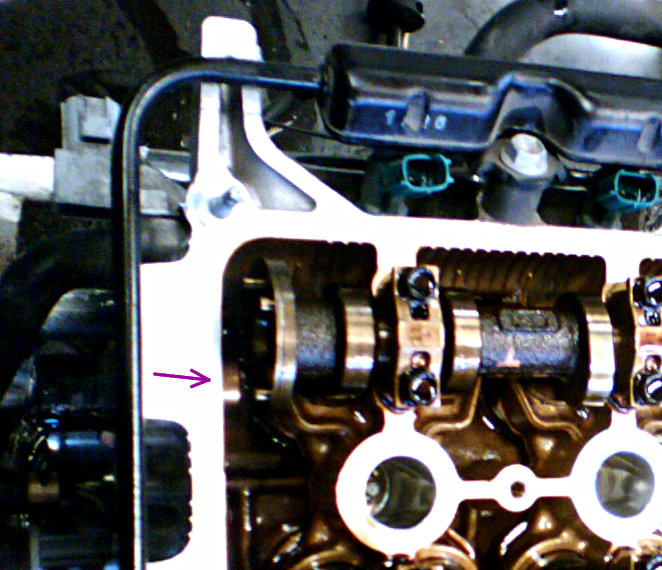

The sensor plate on the end of the intake camshaft.  The three little pins
pass close to the pickup [pink arrow] to trigger it.

_H* 070505
